Complete seal kit for all Horse III, PTO, and OPC tillers, serial numbers 640000 and higher, through model number 12064. This kit fits all Horse tillers equipped with the PTO transmission and the tapered tine shaft. Will not fit later tillers (Beginning with model 12068) which are equipped with the straight tine shaft (see kit CP1840C for these machines). No substitutions.
- We also have a complete gasket kit for Horse tillers: CP1121A
Replaces: 1840B

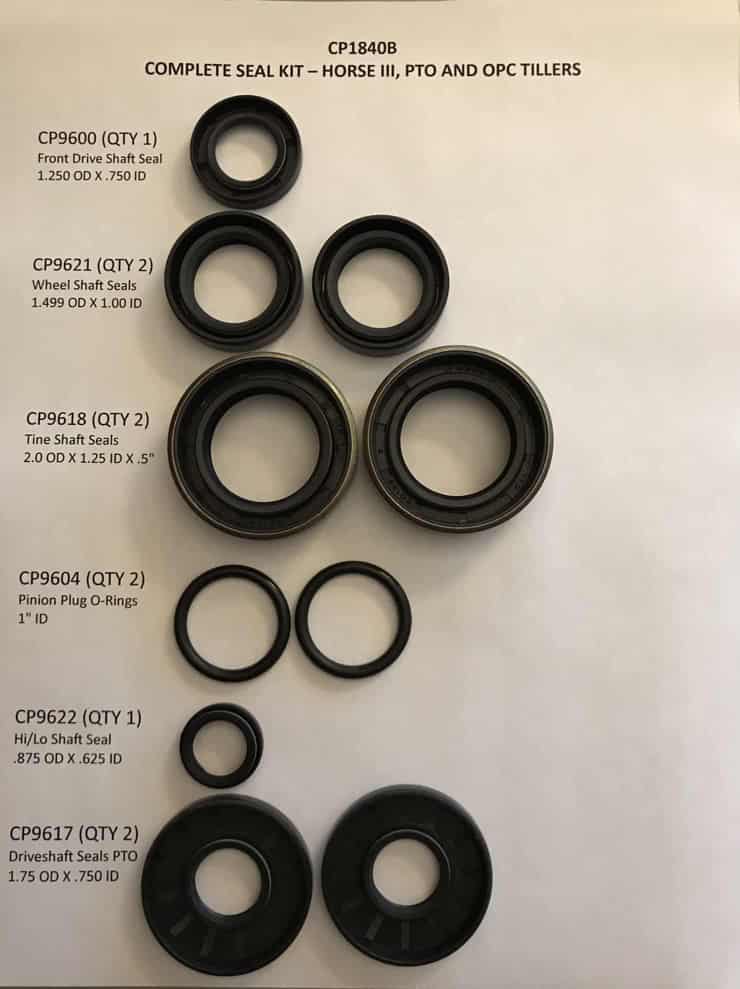

Contains:
- (1) CP9600 - Driveshaft seal 1.250 OD X .750 ID (TB part# 9600, 983632, 921-04044)
- (2) CP9621 - Wheel shaft seals 1.499 OD X 1.00 ID (TB part# 9609, 9621, GW-9621, 921-04031)
- (2) CP9618 - Tappered Tine shaft seals 2.0 OD X 1.25 ID X .5 (TB part# 9616, GW-9616, 9618, GW-9618, GW-9618099)
- (2) CP9604 - Pinion Plug o-rings 1" ID (TB part# 9604)
- (2) CP9617 - Driveshaft seal - PTO 1.75 OD X .750 ID (TB part# 9617, 921-04030)
- (1) 921-04034 (9622) - Hi.Lo shaft seal .875 OD X .625 ID (TB part# 9611, 9622, 921-04034) used on tillers Serial# 493014 and up (OEM Seal)
